EKS Disaster Recovery with Velero: Cross-Region Failover and Testing Guide

Orchestrate application-consistent backups across dependencies

Velero hooks enable application-specific consistency commands before and after backup operations. Let’s review an example with a PostgreSQL StatefulSet, which might include annotations that coordinate database checkpoint operations with snapshot timing.

apiVersion: v1
 kind: Pod
 metadata:
 name: postgres-0
 annotations:
 pre.hook.backup.velero.io/command: '["/bin/bash", "-c", "PGPASSWORD=$POSTGRES_PASSWORD psql -U postgres -c \"SELECT pg_start_backup(''backup'');\""]'
 post.hook.backup.velero.io/command: '["/bin/bash", "-c", "PGPASSWORD=$POSTGRES_PASSWORD psql -U postgres -c \"SELECT pg_stop_backup();\""]'
 pre.hook.backup.velero.io/timeout: 3m

The pre-hook flushes write-ahead logs to disk and creates a consistent checkpoint. Velero waits for successful completion (with a 3-minute timeout) before triggering EBS snapshots. The post-hook releases the backup mode, allowing normal database operations to resume. This per-pod approach maintains application-level consistency but doesn’t coordinate service dependencies.

Production environments run distributed applications where backup order matters. Consider an e-commerce platform with PostgreSQL for order data, Redis for session caching, and three payment processing microservices. Backing up the application tier while database transactions remain in flight creates restored applications that reference uncommitted data. The cache might hold invalidation keys for records that don’t exist in the restored database state.

Dependency-aware workflows coordinate backup execution across service boundaries, as shown below.

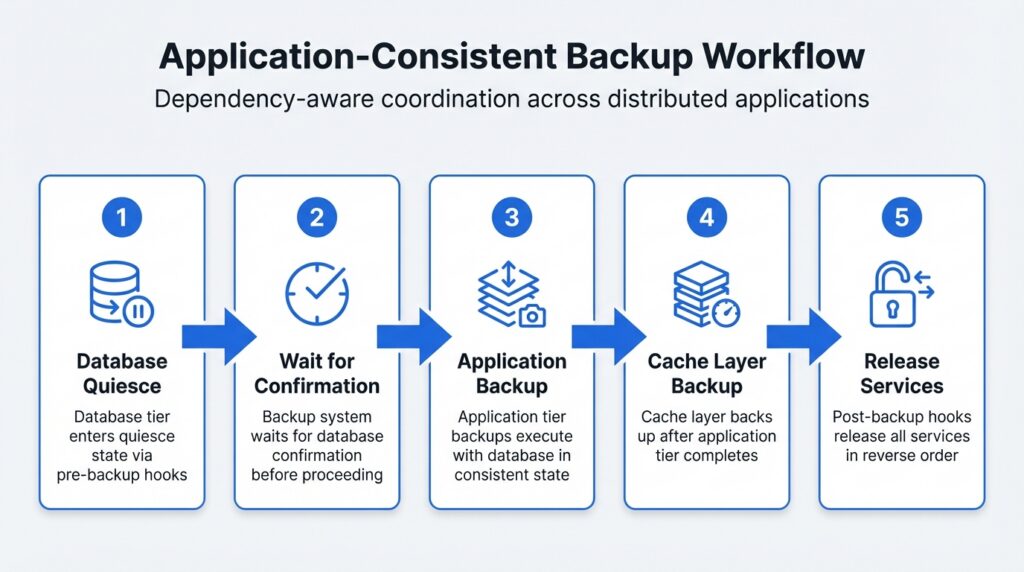

Application-consistent backup workflow with five dependency-aware stages

Implementing this orchestration manually with Velero requires developing a custom controller that watches backup resources and coordinates execution based on annotation-based dependencies. Organizations must build logic to parse dependency declarations, manage execution ordering, handle hook failures gracefully, and retry operations when transient issues occur. This development effort diverts engineering resources from core platform work while introducing custom code that requires ongoing maintenance as Kubernetes and Velero versions evolve.

Application-aware backup policies address these coordination challenges by treating multi-component applications as atomic units rather than collections of independent pods. These policies understand application topology—which services depend on which databases, which microservices share state through caches, and which Helm charts deploy interdependent resources. During backup, the policy orchestrates hooks across all application components in the correct sequence, validates that each phase completes successfully before proceeding, and provides centralized monitoring for the entire application backup rather than tracking individual pod-level operations. Solutions that offer this capability eliminate the need for custom controller development while providing consistent backup workflows that teams can test, validate, and rely on during actual recovery scenarios.

Test disaster recovery procedures regularly and measure RTO

Theoretical RTO estimates assume perfect execution of documented procedures under ideal conditions. Reality introduces delays: EKS cluster provisioning takes longer than AWS documentation suggests, S3 cross-region data transfer saturates available bandwidth, or manual IAM configuration steps require multiple attempts due to policy syntax errors or incorrect trust relationships. Regular DR testing reveals these gaps between theory and practice.

A good test workflow validates multiple aspects simultaneously.

Backup integrity verification confirms that backups contain viable data and complete resource definitions. Restored databases should start successfully, application pods should initialize without CrashLoopBackOff errors, and services should achieve a ready state. If restored applications fail to start, the backup configuration may be excluding critical ConfigMaps or Secrets, or EBS snapshots may capture an inconsistent state due to missing pre-backup hooks.

Actual RTO measurement provides data for capacity planning and incident response expectations. Time each phase separately, as shown in the example below.

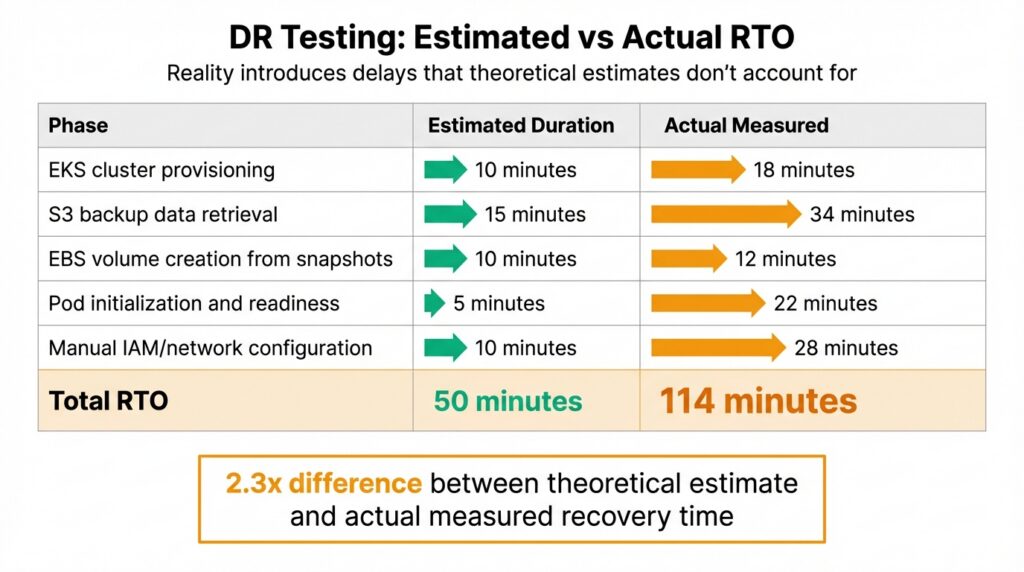

DR testing estimated vs. actual RTO across five typical recovery phases

This example reveals a 2.3× difference between the theoretical estimate and the actual measured recovery time. The S3 data transfer took longer than anticipated due to concurrent backups consuming bandwidth, and pod initialization delays stemmed from container image pulls from ECR in a different region. Manual configuration errors required multiple attempts to correctly configure IAM role trust policies.

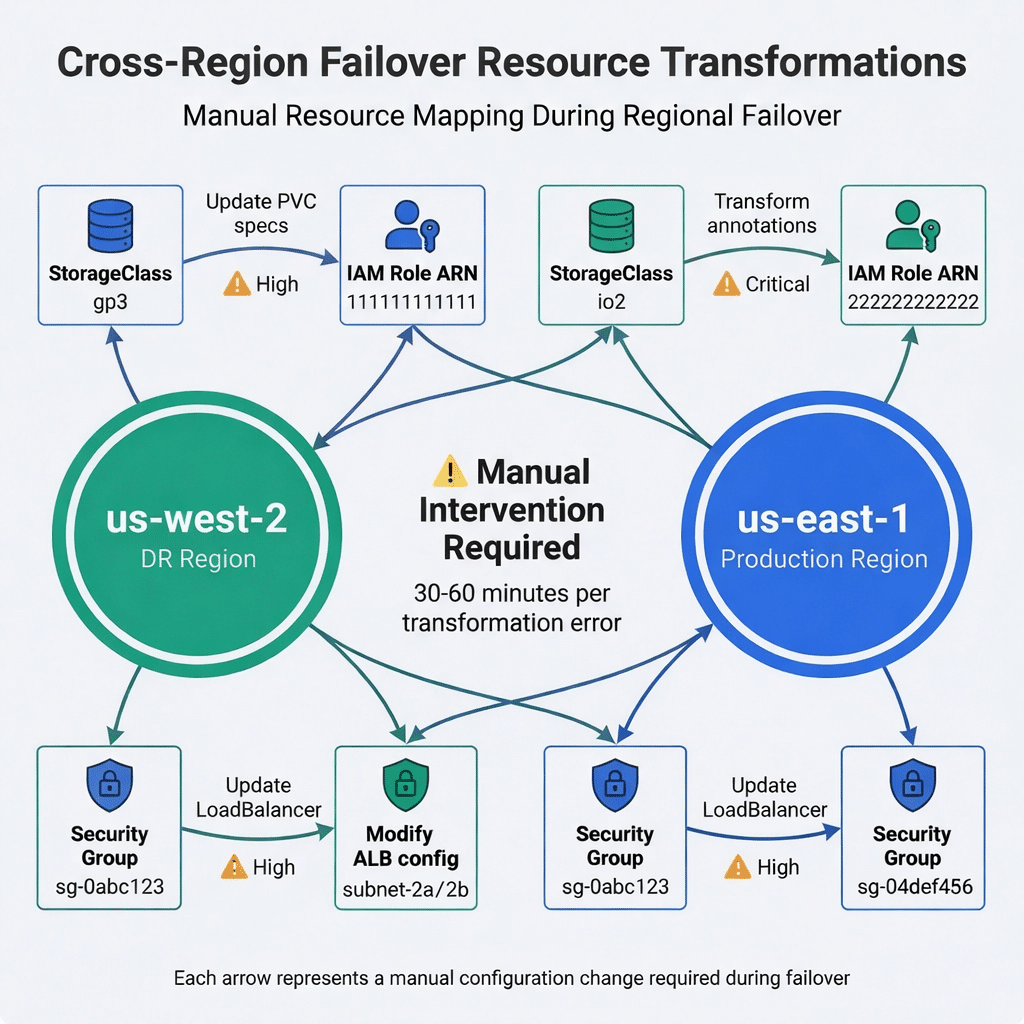

Cross-region configuration validation surfaces AWS-specific modifications required during restore. Test restores to alternate regions expose StorageClass incompatibilities (gp3 not available in older regions), IAM role ARN formatting errors, or Route53 health check configuration gaps. Discovering these issues during quarterly tests rather than during actual us-east-1 outages significantly reduces incident duration.

Non-disruptive testing uses VPC isolation and security groups to prevent test workloads from impacting production:

apiVersion: networking.k8s.io/v1
 kind: NetworkPolicy
 metadata:
 name: dr-test-isolation
 namespace: dr-test-2024-q4
 spec:
 podSelector: {}
 policyTypes:
 - Ingress
 - Egress
 egress:
 - to:
 - namespaceSelector:
 matchLabels:
 name: dr-test-2024-q4

This NetworkPolicy restricts test-namespace pods to communicating only within the test namespace, preventing accidental connections to production RDS instances or external payment-processing APIs. The empty ingress rules block all inbound traffic, ensuring that test workloads remain completely isolated.

Update DR documentation based on test findings. If a test revealed that IAM role assumption required specific ExternalID parameters not documented in runbooks, add explicit examples with correct syntax. If security group references caused LoadBalancer creation failures, document the mapping between production and DR security group IDs with verification commands. Documentation improvements compound over multiple test cycles, reducing human error during actual incidents when cognitive load peaks.

Choose DR solutions aligned with operational maturity and risk

DR tooling selection balances capabilities against operational complexity and risk tolerance during production incidents. Velero provides robust backup and restore functionality as a community-supported CNCF project. Organizations with deep Kubernetes and AWS expertise, flexible RTO requirements, and tolerance for community-supported models may find Velero sufficient. Others require guaranteed support during regional AWS outages or automation that eliminates manual steps during high-stress incident response.

The support model difference becomes particularly relevant during unexpected outages. Imagine a us-east-1 regional outage at 2 AM that affects both production and your on-call engineer’s ability to access documentation. When your production database restore fails with cryptic EBS snapshot errors or S3 permission denied messages, community support means opening a GitHub issue and waiting for community maintainers to investigate. There’s no guaranteed response time, no escalation path for production outages affecting revenue, and no direct access to engineers familiar with your specific IAM configuration or VPC topology.

The diagram maps these differences across seven concrete decision factors, showing where the two approaches diverge based on your environment’s actual requirements rather than general preferences. RTO requirements and cross-region failover complexity are often the deciding factors—if sub-hour recovery and automated failover are non-negotiable, the community model’s manual workflows and variable response times introduce unacceptable risk.

EKS DR solution selection framework

Enterprise solutions like Trilio provide vendor support with committed SLAs and AWS-specific expertise:

• 24/7 support with response times based on severity level (15-minute response for production-down incidents)
• Root cause analysis for failed restore operations, including IAM policy debugging
• Configuration review before DR tests to identify potential cross-region issues
• Direct engineering escalation for production-blocking problems during regional outages
• Hotfixes and patches without waiting for community release cycles or dependency updates

Organizations must evaluate the cost of this support against the potential revenue impact from extended outages. As an example, an e-commerce platform generating $50,000 in hourly revenue during peak shopping seasons faces substantial losses if DR recovery time extends from 2 hours to 8 hours due to troubleshooting delays without vendor support.

Be sure to match tooling complexity to team expertise and on-call capabilities. A platform team with deep Kubernetes knowledge, extensive AWS IAM experience, and a proven track record of troubleshooting Velero operations may operate effectively with community support. On the other hand, teams with general cloud operations backgrounds face different challenges. If they manage EKS alongside other responsibilities and support several dozen applications, they might benefit from vendor support that accelerates incident resolution and reduces the troubleshooting burden during outages.
